Detailed Specifications
System Specifications
Intel® Processor12th/13th-Gen Core™ i7/i5/i3/Pentium®WatchdogWatchdog / System Reset, 1-255s
Celeron®LGA 1700, Max 8Core16ThreadMemory2*260-Pin SODIMM, Dual ChannelDDR4 3200MHz, 64GB
Intel® ChipsetH610Intel® GraphicsUHD Graphics, Support s DirectX11.1,
Storage1*M.2 2280 M-Key(H610:SATA;Q670 SATA/PCIe-X4)OpenGL5.0 and OpenCL 2.1 or PCIe X16GPUdisplay

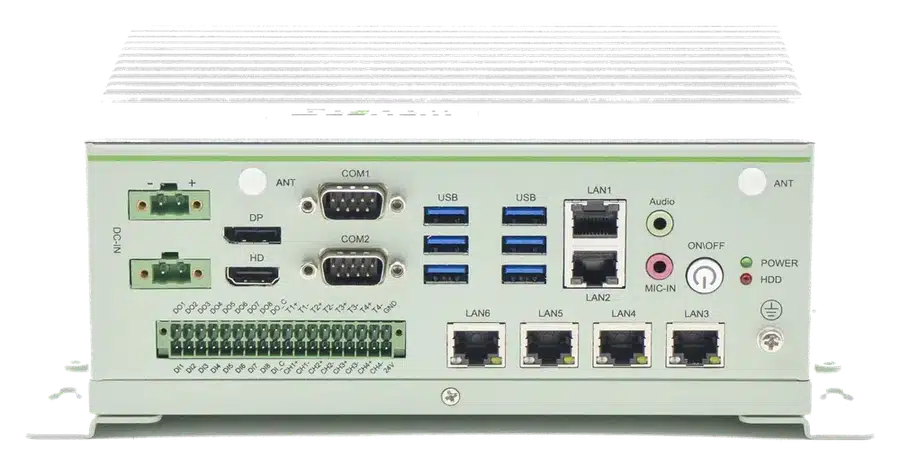

I/O Interfaces
USB 6x USB3.0 Port, 2 x USB2.0(integrated)Audio1*Audio-out & 1*MIC3.5mm 3.5 mm jack
LAN 6*RJ45 Network Port, LAN1 Intel®I225LMNIC Chip,Expansion1*M.2 2230 E-Key( WiFi+Bluetooth) 1*M.2 3042/52 B-Key(Expandable 4G/5G Module), with SIM slot
LAN2Intel®I211ATNIC Chip, LAN3~6PoE802.3AFStandard, POEOutput Total Power ≤40W
COM 2*RS232, OptionalBIOS RS232/485/422 Mode1*Power SW
LED Indicator1*powerLED indicator(Green, ), 1*HDD disk (Red, )Display 1x DP1.2(Max Output resolution: 7680x4320 @ 60Hz)
1x HD 2.0b(Max Output resolution: 4096x2160@60Hz)
Power Specifications
PowerDC IN 18~36V, 2*2PIN with cable 5.08mmWhole UnitWhole Unit Power≦260W, 24V Output, 24V Voltage
Environmental Specifications
Vibration Resistance5 grms / 5~500 Hz / random / operating (SSD); 1 grms / 5~500 Hz / random / operating (HDD)Operating Temperature-25~60 °C with wide-temperature-range SSD and airflow; -10~55 °C with SSD and airflow
Shock Resistance50 g peak, 11 ms continuous (SSD); 20 g peak, 11 ms continuous (HDD)Storage Temperature-40°C~85°C
Operating Humidity10~90%@40°C, non-condensingReliabilityMTBF ≥ 50000 h; MTTR ≤ 0.5 h
Physical Specifications
Dimensions (W x H x D)262*205*87.69mmMaterialheat-dissipating aluminum, SGCC
Weight4.5kgColorWhite + green
