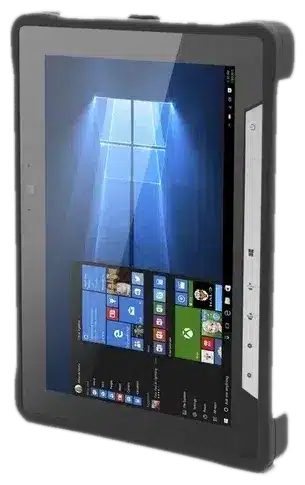

Imágenes del producto
Detailed Specifications
System Specifications
ProcessorIntel® 6th Gen. Core™ I3 (optional I5/I7)SpeakerSingle Speaker
MemoryOnboard8GB DDR4Buttonsbrightness+/-, Volume+/-, Home Key, Power
StorageStandard 64GB SSD, Max 512GBLED IndicatorLED indicator, charging LED
CameraFront 2MP, Rear 5MP
Display
Display10.1″ TFT-LCDContrast800: 1
Resolution1280*800Touchscreenmultitouch touch Capacitive Touch
Brightness350 cd/m2
Operating System
Operating SystemWindows 7, Windows 8, Windows 10, Linux
I/O Interfaces
USB2*USB 3.0, Type-AVideo1*mini HDMI
Serial Port2*RS232 / 1*RS485(Expansion por port RJ45)SIM Card Slot1*SIM slot
LAN1*RJ45 LAN GigabitTF Card Slot1*TF slot
Wireless Communication
WiFi2.4/5.8GHz WiFi dual-bandGPSoptional
BluetoothBT4.04Goptional
Expansion Features
Expansion Featuresoptional RFID, Fingerprint digital, escáner 2D
Power Specifications
Power InputDC input 19 VBattery4000 mAh, 11.55 V Battery de ion lithium
Environmental Specifications
Operating Temperature-10℃～50℃ReliabilityMTBF ≥ 30000 h; MTTR ≤ 0.5 h
Storage Temperature-30℃～70℃(without battery)Shock Resistance10 g acceleration, 11 ms/cycle
Humidity95% @40℃, non-condensingVibration Resistance5-19 Hz / 1.0 mm amplitude; 19-200 Hz / 1.0 g acceleration
IP RatingIP54
Physical Specifications
Dimensions (W x H x D)269*189*27.5mmColorSilver
Weight1.55kgaleación Al-Mg de alta resistencia
Accessories
AccessoriesStandardcapacitive Pen, optional hand strap, with
