Detailed Specifications
System Specifications
ChipsetIntel® Core™ i5-8265U(optional i3-8145U/i7-8565U)MemorySMD8GB LPDDR3Memoria
StorageM.2, 128GB, up to 512GBWatchdogHW Reset Support ed(256, 0~255s)
Display
Display21.5″ LCDBrightness250 cd/m2
Touchscreen21.5″ Capacitive TouchContrast1000: 1
Resolution1920*1080
Operating System
Operating SystemWindows10, Linux

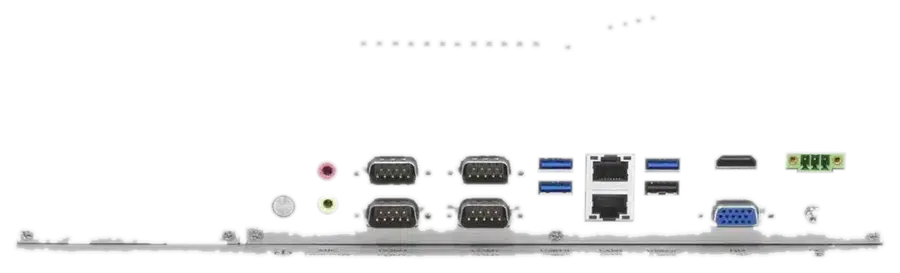

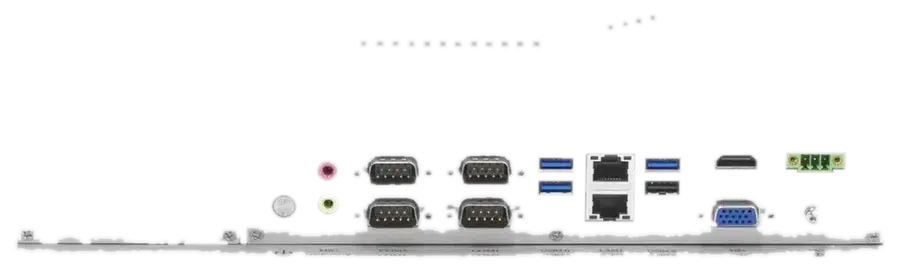

I/O Interfaces
USB3*USB3.0 +1*USB2.0Mini PCIe1*Mini PCIe(4G/5G optional)
Serial Port4*RS232(COM3/4 optional RS485)SIM Card Slot1* integrated SIM slot
LAN2* LAN Gigabit RJ45M.21* M.2 NVME/SATA 2280/2242 SLOT
Audio1* output de línea + 1* input de microphoneExpansionPCIex1/SMBUS/USB2.0x1/Uart x2
Display1*HDMI + 1*VGAWiFiWiFi 802.11ac 2x2 1.73 Mbps(optional)
DCPhoenix terminal de 3 pinsBluetoothBluetooth 5.0(optional)
Power Specifications
Power12V~28V wide-voltage input(1*3pin Phoenix terminal), Standard 19V/4.74AAdapter(External ExpansionPOEModule Additional optional Adapter)
Environmental Specifications
Vibration Resistance5-17 Hz / 1.0 mm amplitude; 17-200 Hz / 1.0 g accelerationOperating Temperature-10℃～55℃(rango extendido optional)
Shock Resistance10 g acceleration, 11 ms/cycleStorage Temperature-30℃～70℃(rango extendido optional)
IP Ratingfront panel IP65Operating Humidity95% @40℃, non-condensing
Physical Specifications
Dimensions (W x H x D)540*331.6*74.3mmAluminum
Weight6.5kgMounting MethodVESA mount: 100*100 mm flush mount: 527*318.5mm
ColorSilver
