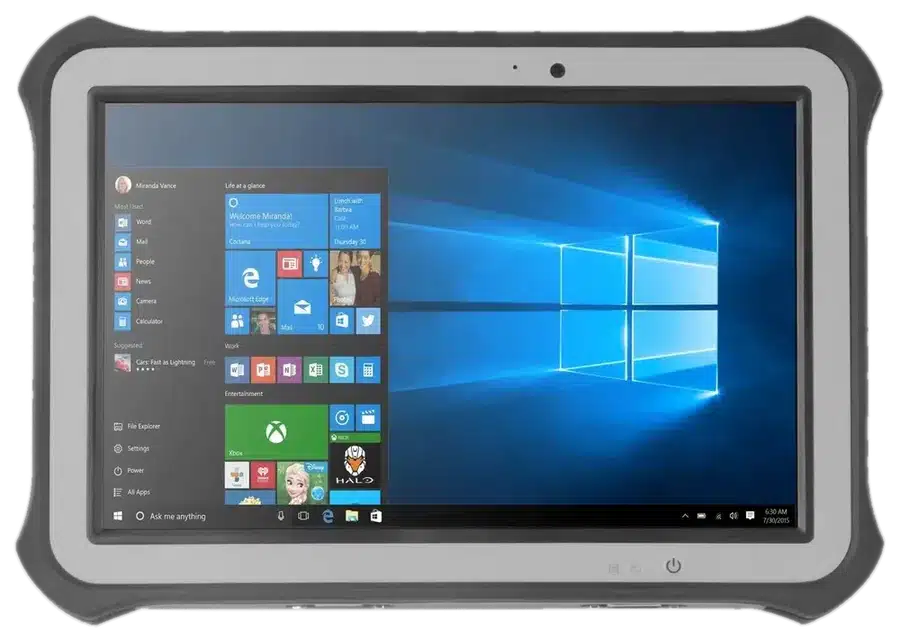

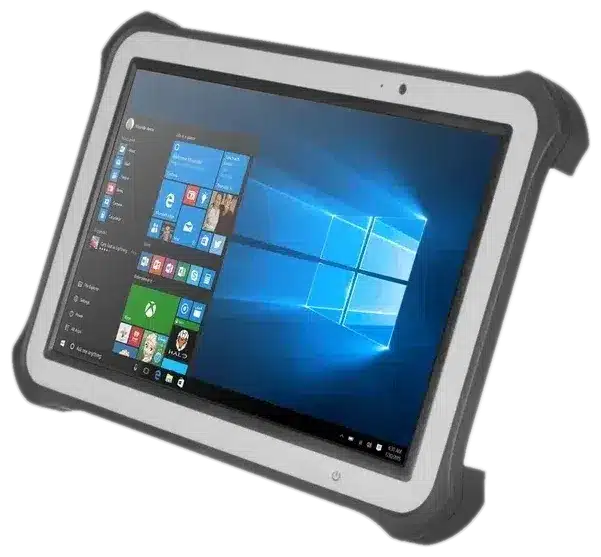

Imágenes del producto
Detailed Specifications
System Specifications
ProcessorIntel® Celeron® J1900MemoryStandard 2GB DDR3L Memoria, Max 8GB
Watchdog0-255s/configurable via softwareStorageSSD:64GB, up to 512GB(1*MSATA)
CameraFront 2MP
Display
Display10.1″ TFT LCDContrast1000: 1
Resolution1280*800Touchscreenmultitouch touch capacitive
Brightness350 cd/m2
Operating System
Operating SystemWindows 7, Windows 10, Linux

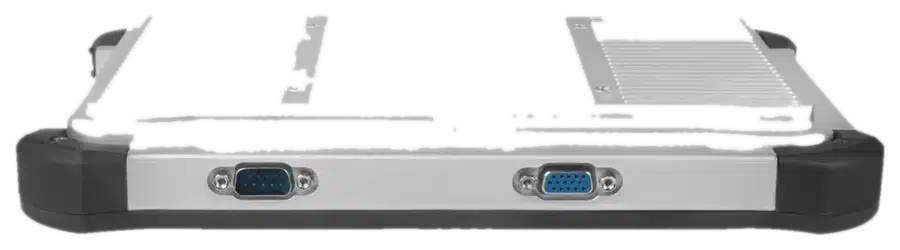

I/O Interfaces
USB1*USB 3.0 +3*USB 2.0cableWiFi
Serial Port2*RS232(optional 4*RS232, 3x DB9Port 13 )Display1*HD(optional 1*VGA, x Standard DB9Port)
Audio1*Line-outNetwork2*1000M LAN
Power Specifications
Power InputInput Voltage/Freq: 100~240V AC/50~60Hz(Adapter) Input Voltage/: 9-24V DC/5A(No adapter)
Environmental Specifications
Vibration Resistance10 Hz ≤ f < 58 Hz, etc.0.075mm 58 Hz ≤ f < 500 Hz, etc.acceleration1gOperating Temperature-10℃～55℃(rango extendido optional)
Storage Temperature-30℃～70℃(rango extendido optional)Shock Resistance10 g acceleration, 11ms/cycle
Operating Humidity93% @40℃, non-condensingReliabilityMTBF ≥ 30000 h; MTTR ≤ 0.5 h
Physical Specifications
Dimensions (W x H x D)275.2*195.2*36mmColorSilver Gray
Weight1.45kg/1.8kg(N.W. / G.W.)Aluminum Fanless Design
¿Quiere confirmar la configuración?
Cuéntenos la aplicación, el tipo de montaje, las interfaces y el sistema operativo. Nuestro equipo técnico le ayudará a cerrar la selección.
