Detailed Specifications
System Specifications
Storage(optional MSATA/ M.2 2280 SATA/NVME SSD 128/256/512GB/1T/2T/4T)Watchdog0-255s/configurable via software
Display
Resolution1920*1080Touchscreen21.5″Multi-Touch Capacitive
Operating System
Operating System10/11, Windows / Ubuntu
I/O Interfaces

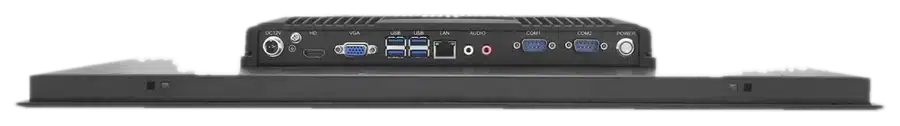

USB4*USB3.0, 1*RS232 optional 3*RS232/485/422en la parte upper(Max Simultaneous 2*RS485 / 1*RS485+1*RS422) 4*1Gbe RJ45Display1*HDMI, 1*VGA
Expansionoptional dual-band WiFi/BT, optional 4G/5GCommunicationSIM Card Slotwith 4G/5Gcuando optional customizable
Power Specifications
Power InputStandard Phoenix terminal, Adapter Input. optional Auto Power-On and 9-36V wide-voltage input
Environmental Specifications
Vibration Resistanceamplitude; 17-200 Hz / 1.0 g acceleration 5-17 Hz / 1.0 mmOperating Temperature-10℃～60℃ with surface airflow
Shock Resistance10 g acceleration, 11 ms/cycle MTBF ≥ 30000 h; MTTR ≤ 0.5 hStorage Temperature-20℃～70℃
Operating Humidity95% @40℃, non-condensingIP Ratingfront panel IP65
Physical Specifications
Dimensions (W540.3mm*331.7mm*57.2mmMaterialFanless All-Metal
Weight6.3kg/6.8kg(N.W. / G.W.)Mounting MethodVESA mount: 75*75mm/100*100mm flush mount: 526.30mm*317.70mm
ColorBlack
